Vacuum Kamer

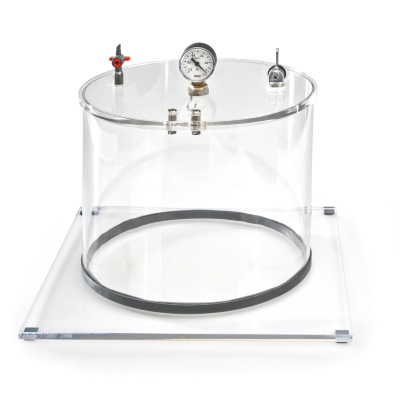

Vacuum Recipient Inexpensive vacuum recipient made of transparent acrylic for experiments in coarse and fine vacuums. Comprises a base and vacuum cylinder with venting valve, manometer, inlet tap, entrance for contacts and rubber ring. In addition, an adapter to connect the rotary-vane vacuum pump, two-stage (1003317) via the vacuum hose 8mm (1002619) to the recipient. Volume: 9 l approx. Leakage rate: < 0.5 mbars/h Base plate: 320x320x10 mm approx. Vacuum cylinder: 200 mm x 240 mm (diam.) approx. Thickness of walls: 5 mm Weight: 2.9 kg approx.
